AI-Driven Mixed-Signal Chip Design

New The flow now catches what DRC and LVS can't: EM/IR, per cell, at build time

From a paper to a whole mixed-signal chip

Si-Hive uses agentic AI to drive the entire flow — circuit design, analog layout, digital synthesis, chip assembly and DRC/LVS signoff — turning a datasheet or a research paper into clean, verified silicon.

40+ Years in analog design
5+ Years in AI
Paper → chip Autonomous back end

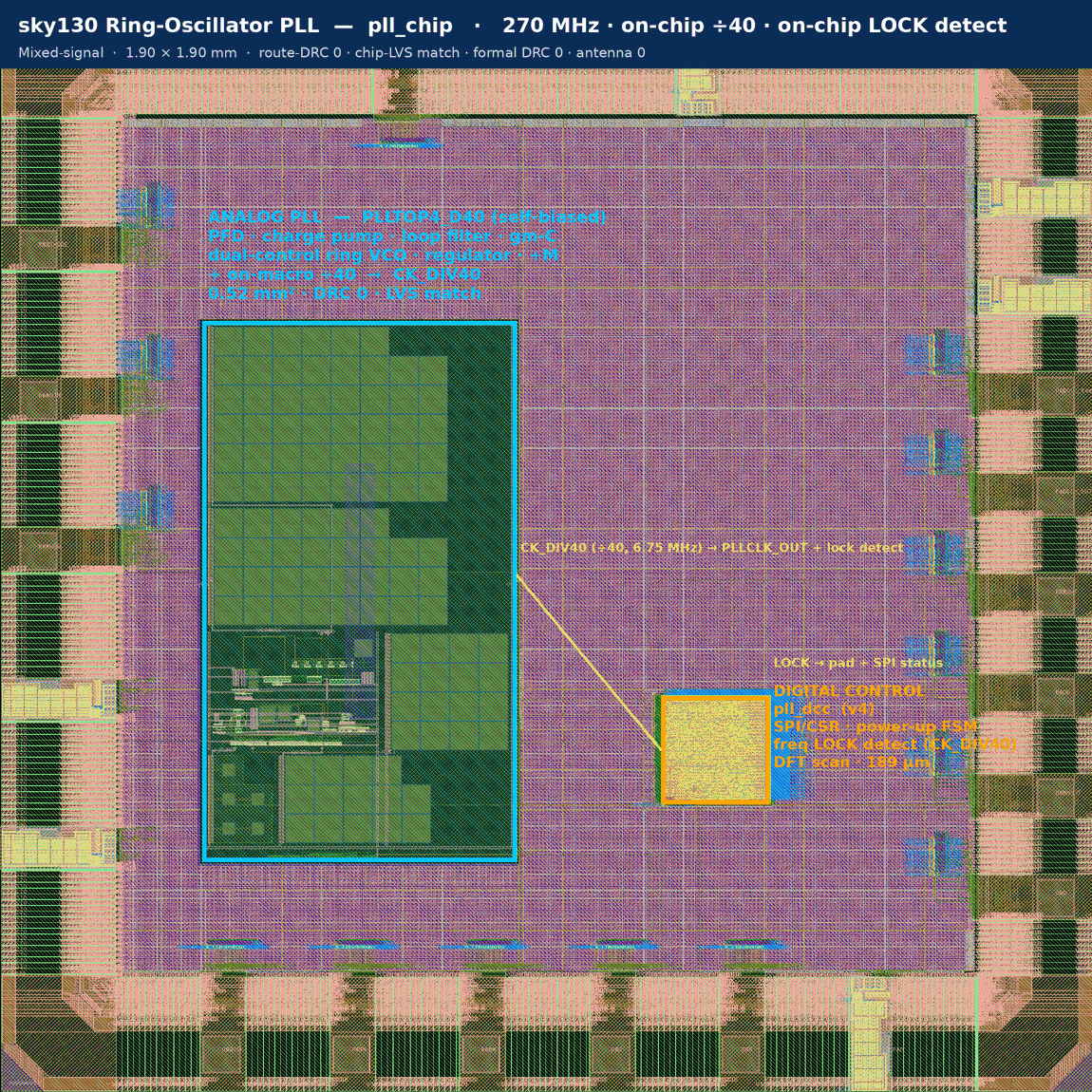

AI-assembled mixed-signal chip on sky130 — the analog PLL macro (left) and the digital control core (centre-right) inside a full pad ring with metal fill.
The final mixed-signal chip on sky130 — the PLLTOP4_D40 analog macro + digital control core inside a full pad ring with fill, assembled and signed off by AI.
📄
Input Datasheet · IEEE paper · spec
🧠
Agentic AI Circuit · layout · digital · assembly
🔬
Chip GDS · DRC / LVS clean

New this week: the flow catches what DRC and LVS can't

An EM/IR reliability gate now runs beside DRC and LVS on every cell the engine builds. The newest capability leads below; the full 7 nm chip milestone and the manufacturable sky130 anchor follow in detail.

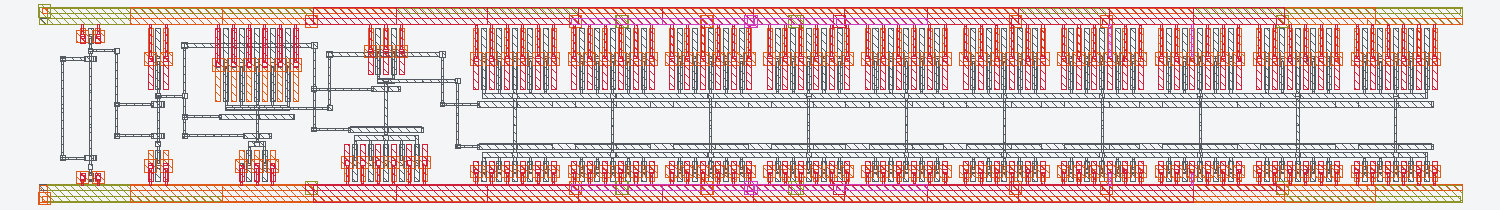

Per-rectangle EM/IR heat map of a from-scratch 20 mA switching driver — DRC-clean and LVS-matched, yet red along both supply rails: 102× over its electromigration limit at the worst-case corner.
★ Newest capability · July 2026

DRC clean. LVS clean. 102× over its electromigration limit.

A layout can pass every conventional check and still cook its own metal. 102× → 2.65× in 7 automated iterations — a from-scratch 20 mA driver, measured against its own operating current, repaired through the builders, DRC/LVS re-gated at every step. The EM/IR gate now rides every cell build.

102× → 2.65×worst EM @ worst-case corner
156.7 → 8.7 mVworst IR-drop vs a 32.4 mV budget
704 → 0gating violations · minutes of tool time
0.03–0.27 sstructural gate on every cell build

Honestly: sky130 EM limits are estimates (SkyWater publishes none) — these are structural findings, not signoff; ihp130/gf180 run on real foundry LEF limits. None of this replaces foundry signoff — it moves discovery to the cheapest moment.

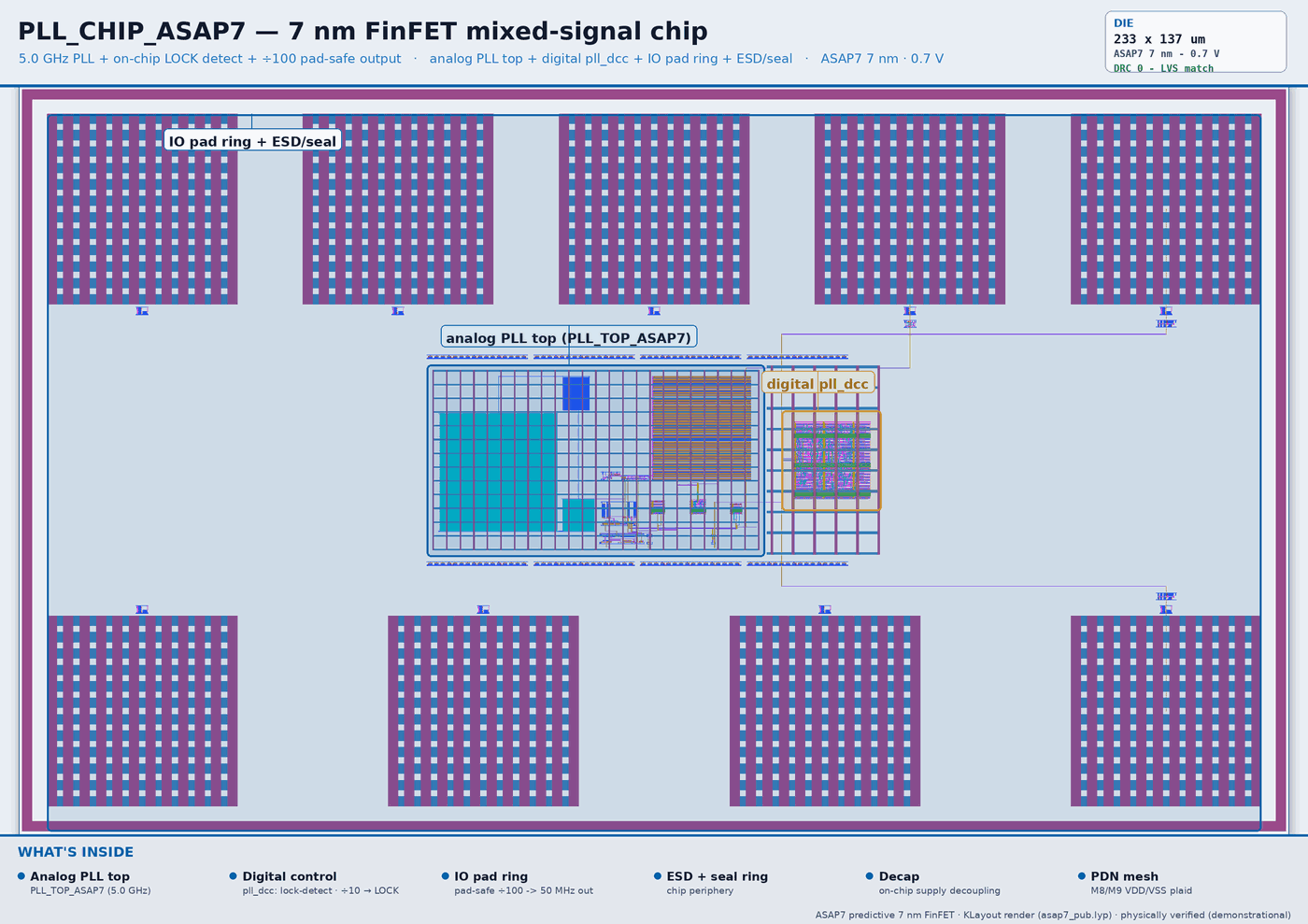

The assembled ASAP7 7 nm mixed-signal chip PLL_CHIP_ASAP7 — the analog PLL top inside an I/O pad ring, ESD, seal ring, decap and a VDD/VSS power mesh, with the digital control core.
★ Milestone · July 2026

The 7 nm PLL is now a full, physically-verified chip

The self-contained, on-chip-biased macro was wrapped into a full mixed-signal chip — PLL_CHIP_ASAP7 (I/O pad ring, ESD, digital control core, power mesh) — and on-chip lock was witnessed across all three corners against the real analog loop.

5.0 GHzlock · every corner
233 × 137 µmfull mixed-signal chip
DRC-0 · LVS ✓antenna-0 · physically verified
3 cornerson-chip lock witnessed

Honestly: ASAP7 is a predictive PDK — physically verified but demonstrational, not tapeout-ready. The on-chip bias surfaced a PVT-tracking finding we're closing.

The sky130 chip, in detail — the manufacturable anchor

Read the full Paper-to-Chip (sky130) story →

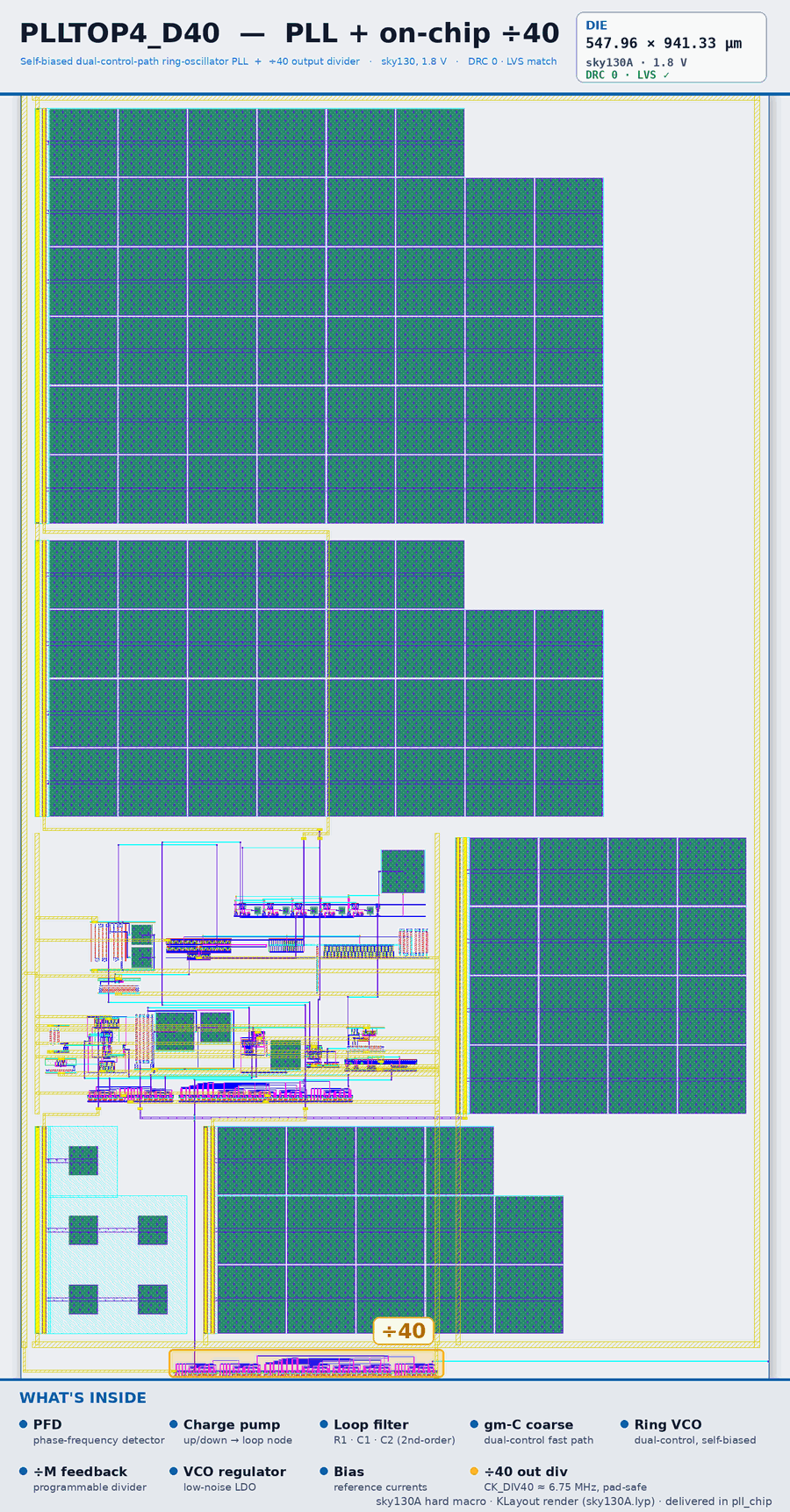

PLLTOP4_D40 — the AI-generated sky130 analog PLL macro: MIM loop-filter and decap banks, the charge-pump / VCO core with labelled routing (VCOARSE, V_PUMP, VCTRL, VCO_CLK, CK_DIV40), and a VDD/VSS mesh.
The analog PLL — PLLTOP4_D40 on sky130: MIM cap banks, the charge-pump / VCO core, and a VDD/VSS mesh. DRC-clean, LVS-matched.

Circuit reasoning is already a strength. Working from the paper, the AI built the device-level netlists, sized and optimised the transistors, ran ngspice, wrote its own documentation and iterated — like a fast, tireless junior designer.

Layout is the roadblock — so we changed the game. The AI doesn't draw polygons; it writes a Python generator that draws them, on a collision-aware grid that is legal by construction. And the multiplier: the AI can measure itself — rendered images it reasons about visually, structured verdicts, and a numeric quality score. With those loops it did the complete back end — placement, routing, and full DRC/LVS cleanup — with no human in the loop.

One supervising engineer. One paper in. A whole chip out — analog PLL macro, digital control core, pad ring, fill and assembly, checked to DRC and LVS.

Circuit sizing & ngspice AI analog layout RTL synth · STA · CTS · DFT Pad ring · fill · assembly RC extract · post-layout sim Real-number (RNM) model Schematic & symbol gen

How close did it get?

Paper (0.18 µm) vs. this AI-built sky130 layout — post-layout, RC-extracted.

ParameterPaper (0.18 µm)This work — sky130, AI
Process0.18 µm CMOSsky130 (open PDK)
Reference → output27 MHz → 270 MHz (÷10)270 MHz lock (all corners)
VCO tuning range100–500 MHz (5:1)100–300 MHz (3:1), no band switching

Layout is DRC-clean and LVS-matched. Because the flow is PDK-parameterised, the same design ports to another open PDK in about a day.

Post-layout signoff — all corners

Final RC-extracted rides, TT / SS / FF. Complete and valid.

MetricTTSSFF
Lock frequency270 MHz270 MHz270 MHz
Period jitter1.96 ps0.60 ps2.30 ps

Every corner locks at 270 MHz with period jitter under 5 ps — the final post-layout rides are valid and complete.

Open by design — take it and build on it

We've open-sourced this PLL as the Paper-to-Chip repository — netlists, device sizing, the sky130 layout generators, review schematics, and the full paper-to-clean-silicon flow. It's there for everyone: students learning how mixed-signal design and layout actually work, individual engineers and hobbyists exploring open silicon, university groups, and startups who want a PLL to build on. The 7 nm FinFET outputs are open too — see the ASAP7 Planar-to-FinFET repository.

Two ways in — one autonomous flow

Whether you have a vendor datasheet or a research paper, our AI pipeline turns a specification into verified silicon — analog blocks or whole mixed-signal chips.

01 Parse spec / paper
02 AI circuit design
03 Analog layout synthesis
04 Digital hardening
05 Assemble & sign off
06 GDS + review views

Analog & mixed-signal IP

Core building blocks — plan to generate and verify with AI, then ready to integrate into your SoC or to compose into a full chip.

PLLs

Ring & LC VCOs, PFDs, charge pumps, loop filters, dividers

📊

ADCs

SAR, pipeline, and delta-sigma architectures from spec targets

📉

DACs

Current-steering and resistor-ladder DACs with matching optimisation

🌡

Bandgaps

CTAT/PTAT references, curvature correction, low-drift BGR cores

LDOs

Low-dropout regulators with stability and load-transient optimisation

🔋

Power Management

Buck/boost converters, references, and PMIC building blocks

📡

High-Speed I/O

Memory PHY heritage — GDDR, LPDDR, HBM, DDR

🎯

Custom & digital

Any topology from your datasheet or paper, plus the digital control around it

Multi-PDK by design

Our flow is PDK-parameterised, so every design is portable — same spec, multiple foundries. Three open planar nodes are live today, joined by a predictive 7 nm FinFET port (ASAP7); commercial and foundry PDKs on request.

sky130 SkyWater 130 nm
gf180 GlobalFoundries 180 nm
ihp130 IHP SG13G2 130 nm
ASAP7 7 nm FinFET · predictive
Your PDK? Commercial or foundry — let's port the flow together →

Have silicon on a commercial or foundry PDK? The design rules and device models change — the design doesn't. We'll bring the whole flow to your process, with you. That's exactly the partnership we're looking for.

One engine, every node

A design is written once; a process is a plugin. Here's the path we've actually paved — and where it goes next. sky130 is real, manufacturable silicon; ASAP7 is a predictive 7 nm demonstration. Early — like AI video's "grainy Will Smith" phase — but on a curve that, in every adjacent field, bends upward fast.

Silicon-real · done

130 nm — sky130 · planar

A ring PLL plus four LVDS iterations, DRC/LVS-clean on a manufacturable open PDK. A real tapeout path.

Predictive · done

7 nm — ASAP7 · FinFET

The same PLL re-architected and signed off — 5.0 GHz, well-damped every corner. ASAP7 is a predictive academic PDK, not silicon.

A plugin away

7 nm — commercial · FinFET

TSMC N7 / Samsung / Intel are the same FinFET flow behind an NDA. The gate is access, not capability.

Projected

2–1 nm — GAA · nanosheet

The engine and porting contract carry over; the device generator extends FinFET → gate-all-around. GAA models are the added work.

Deep analog expertise, amplified by AI

We at Si-Hive are passionate about AI and analog design — 40+ years of analog design experience and 5+ years in AI. Founded in 2020, Si-Hive Technologies pairs decades of high-speed mixed-signal know-how with an AI-native layout and optimisation engine.

We've delivered first-silicon-success PHY designs at GDDR6 (18 Gbps), HBM2/2e, DDR3/4 and LPDDR3/4/5 — and now we bring that rigor to AI-driven mixed-signal chip design.

Recent milestones — AI-driven

  • Paper → clean sky130 chip. A published PLL paper taken to a DRC/LVS-clean mixed-signal chip on open silicon — assembled, signed off, and open-sourced.
  • Planar → 7 nm FinFET, hands-off. The same PLL re-architected to 5.0 GHz on a 7 nm FinFET node (ASAP7, predictive), well-damped every corner, DRC-0-net-new / LVS-match.
  • Packed −48% — and it got better. A tighter floorplan shortened the loop-critical route, improving worst-case jitter to 0.124 ps. Better, not just smaller.
  • Bias on-chip → a full 7 nm chip. The PLL became self-contained, then a physically-verified mixed-signal chip (PLL_CHIP_ASAP7) with on-chip lock witnessed across every corner — model-grade on a predictive PDK, with an honest bias-tracking finding still being closed.
  • EM/IR gated per cell, at build time. Electromigration + IR-drop now checked beside DRC/LVS on every cell the engine builds — measured currents, worst-case corners, a closed repair loop. A from-scratch 20 mA driver went 102× → 2.65× in 7 automated iterations. sky130 EM limits are estimates: structural findings, not foundry signoff.
40+ yrs analog · 5+ yrs AI The rare mix that makes AI-driven analog actually work
10+ patents High-speed mixed-signal & low-power design
First-time-right Proven silicon track record across PVT corners

Si-Hive Technologies Pvt. Ltd.

Sierra Cartel, 1207/343, 9th Main
Sector 7, HSR Layout
Bangalore, Karnataka 560102, India
GST
29ABECS2254C1ZI
PAN
ABECS2254C
Founded
2020
github.com/NavinSiHive/Paper-to-Chip-130nm_Planar-to-7nm_FinFET

Have a block or chip to build with AI?

We're looking for analog / mixed-signal / chip-design partners and pilots. Our flow runs today on open PDKs, and we'd love to bring it to your commercial or foundry PDK. If you have an analog or mixed-signal block or chip (< 10 mm²) you'd like to build with AI, let's talk.
